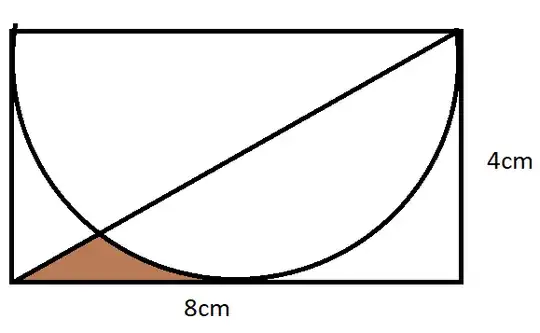

What is the area shaded in this figure?

Question

I was sent this problem by a friend, they say it is a year 6 question. Using trigonometry I got the shaded area as $4 - \frac{\pi}{3}$.

Now Year six, I doubt if they do trigonometry. Is there another approach out there?

Answer 1

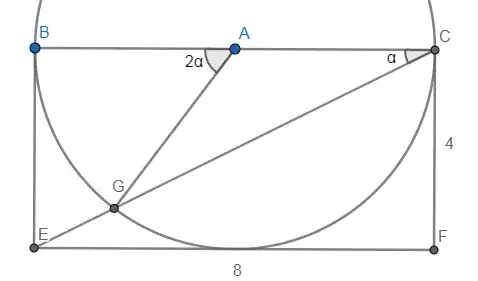

Label the vertices as shown in the diagram. $\tan\alpha=\frac{1}{2}\implies \tan 2\alpha=\frac{4}{3}\implies 2\alpha=\tan^{-1}(\frac{4}{3})$

$\therefore$ Area of circular sector$ BAG=8\tan^{-1}(\frac{4}{3})$

Area of $\triangle AGC=16\cos\alpha\sin\alpha=8\sin2\alpha=\frac{32}{5}$

Thus, area of curved figure $BEG=\frac{48}{5}-8\tan^{-1}(\frac{4}{3})$

Therefore, Area of shaded part$=\frac{1}{2}$ (Area of $BEFC$)$-\frac{1}{2}$ (Area of semicircle)$-$Area of curved figure $BEG$.

This gives $\frac{32}{5}-4\pi+8\tan^{-1}(\frac{4}{3})=\frac{32}{5}-4\tan^{-1}(\frac{3}{4})\approx1.252$

Answer 2

Flip the image by vertically.

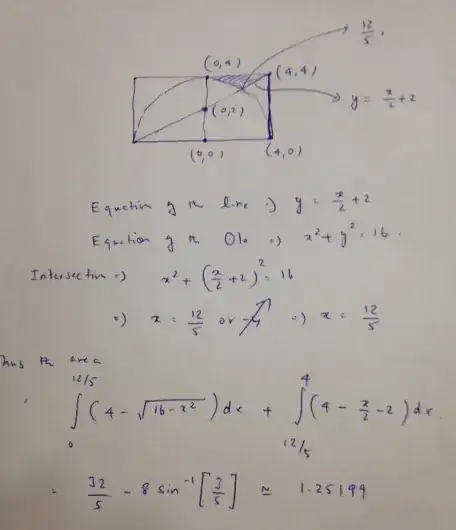

It is not as simple as you think. Year six is probably high school when they can do geometry and calculus. I have done it using calculus and the area is as shown in the figure

Answer 3

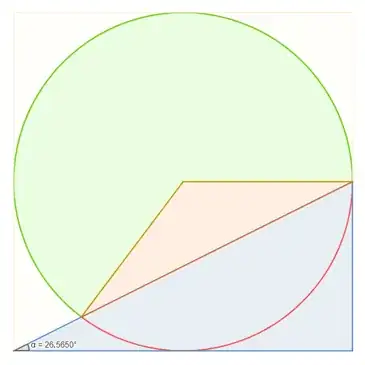

$\color{blue}{\text{Triangle Area }}$(the larger blue triangle) = $\color{blue}{\text{Sector Area }}$(of the circle) + one $\color{blue}{\text{Corner Area }}$+ $\color{red}{\text{x Area }}$

If radius (r) = 1

Steps	Formulas	Values
1.	$A_{\color{green}{\bigcirc}} = \pi r^2$	$\pi (1)^2 = \pi \times 1 = \pi \approx 3.1416$
2.	$A_{\color{brown}{\square}} = \text{Side}^2$	$2 \times 2 = 4$
3.	$A_{\color{blue}{\triangle}} = \frac{1}{2} \times \text{Base} \times \text{Height}$	$\frac{1}{2} \times 2 \times 1 = 1$
4.	$A_{\text{corner}} = \frac{A_{\color{brown}{\square}} - A_{\color{green}{\bigcirc}}}{4}$	$\frac{4 - 3.1415}{4} = 0.2146$

$A_{\text{corner}}$ is the area outside the circle but inside the square for a single corner only.

Step 5 – The BLUE Triangle | Find the $\alpha$

Using trigonometry, given that Opposite side (a) = 1 and Adjacent side (b) = 2

∴ $tan(\alpha)$ = 1/2 => $\alpha$ = $tan^{-1} \left( \frac{1}{2} \right)$ => $\alpha$ = 26.5650°

$\color{lightgray}{\boxed{\text{Hypotenuse } (c) \text{ is: } a^2 + b^2 = c^2 \Rightarrow 1^2 + 2^2 = c^2 \Rightarrow 1 + 4 = c^2 \Rightarrow \sqrt{5} = c \approx 2.236}}$

Step 6,7 – The ORANGE Triangle | Find the $\beta$ and Area $A_{\color{orange}{\triangle}}$

Intuitively analyze it, the Orange Triangle is Isosceles, and one of its angles is an alternate interior angle of $\alpha$.

∴ both of its Base Angles are 26.5650$^\circ$

∴ the Vertex Angle ($\beta$) = 180$^\circ$ - 26.565$^\circ$ - 26.565$^\circ$ $\approx$ 126.8700$^\circ$

Splitting the orange isosceles triangle from its center creates two equal right-angled triangles. By drawing a perpendicular from the vertex angle, or equivalently from the center of the circle to the base of the orange isosceles triangle, divide it into two congruent (or equal) right-angled triangles.

Now, consider The Orange Triangle as two right-angled triangles with the Hypotenuse (c) is equal to the radius (r) = 1 and $\alpha$ = 26.5650$^\circ$

Using Trigonometry

Opposite side (a) = c $\cdot sin$(26.5650$^\circ$) $\approx$ 0.4472
Adjacent side (b) = c $\cdot cos$(26.5650$^\circ$) $\approx$ 0.8944

Since, the area of The Orange Triangle is twice the sum of both halves

Area $A_{\color{orange}{\triangle}}$ = 2 $\times \frac{1}{2} \times b \times a$ $\Rightarrow$ 0.4472 $\times$ 0.8944 $\approx$ 0.4

Alternatively, a more common approach is to duplicate the orange isosceles triangle along its non radii side to form a parallelogram. The area of this parallelogram is given by
$A = r \times h$, where the height $h$ is $r \cdot \sin(2\alpha)$. The factor $2$ appears because the angle is also duplicated at this corner, angle $\beta$ doesn't have this issue. Taking half of this area gives the area of the orange triangle.

Step 8,9 – The Non-GREEN region of the Circle | Find Sector & Segment

Area of the minor sector of the circle using Vertex Angle ($\beta$)
$A_{\text{sector}} = \frac{A_{\color{green}{\bigcirc}}}{360} \times \beta$ $\Rightarrow$ $A_{\text{sector}} = \frac{3.1416}{360} \times$ 126.8700 $\approx$ 1.1072

By removing the orange triangle from this sector left with the area of the minor segment (or blue Segment)

$A_{\color{blue}{segment}}$ = $A_{\text{sector}}$ - $A_{\color{orange}{\triangle}}$ $\Rightarrow$ 1.1072 - 0.4 $\approx$ 0.7072

---

Step 10 – Find area X

$A_{\color{blue}{\triangle}}$ = $A_{\color{blue}{segment}}$ + $A_{\color{blue}{corner}}$ + $\color{red}{A}_{\color{red}{x}}$
$\Rightarrow$ $\color{red}{A}_{\color{red}{x}}$ = $A_{\color{blue}{\triangle}}$ - $A_{\color{blue}{segment}}$ - $A_{\color{blue}{corner}}$
$\Rightarrow$ $\color{red}{A}_{\color{red}{x}}$ = 1 - 0.7072 - 0.2146
$\Rightarrow$ $\color{red}{A}_{\color{red}{x}}$ = 0.0782

Note: ∵ r = 1, Ax = 0.0782. For r = 4 (diameter = 8), see the table below.

---

Summary

1.  - Area of the circle
2.  - Area of the circumscribed square
3.  - Area of the blue right-angle triangle (quarter of the square)
4.  - Area of the one Corner (quarter of the area of Square minus Circle)
5.  - Angle α of the blue triangle using tan(α) where a=radius and b=diameter
6.  - Angle β of the Orange Triangle, an isosceles triangle with two angles as α
7.  - Area of the Orange Triangle calculated using two right-angled triangles
8.  - Area of the minor sector using β
9.  - Area of the minor segment (sector minus Orange Triangle)
10. - AreaX = area of Blue triangle - area of segment - area of Corner

---
