I read that glueing together two Möbius strips along their edges creates a surface that is equivalent to the so-called Klein bottle.

The Möbius strip comes in two versions that are mirrored versions of each other (wrt the chirality of the half-turn in the strip).

So glueing together two of them, does it matter whether they are mirrored versions of each other or not? Is there a different result?

azimut
  • 24,316
Gerard
  • 1,651

4 Answers4

24

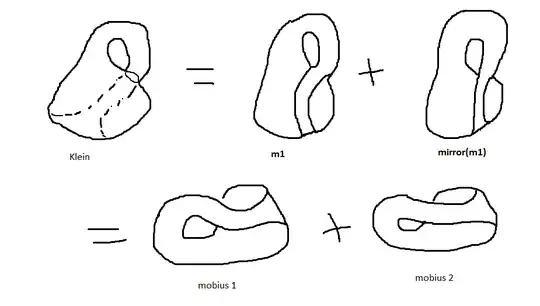

If you are careful with your deformations when you draw topological examples, you can prove it by making a very crude drawing, like the one below. The cut occurs at the vertical plane of symmetry of the bottle. It is fairly clear that the final objects are Mobius bands.

enter image description here

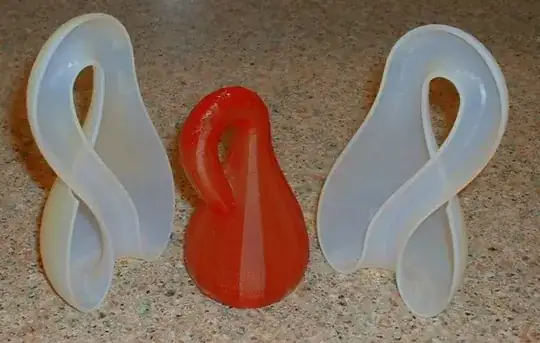

foudn here: www.ifp.illinois.edu/~sdickson/Klein/Klein.html

Gerard
  • 1,651
  • 2
    I added a picture with the same idea where you can clearly see that the two versions are mirrored versions of each other. Source: http://www.ifp.illinois.edu/~sdickson/Klein/Klein.html – Gerard Aug 24 '14 at 14:12
  • 1
    @Gerard: Ah, excellent! Thanks for the improvement. My mind didn't go to searching the net for this. –  Aug 24 '14 at 14:42
10

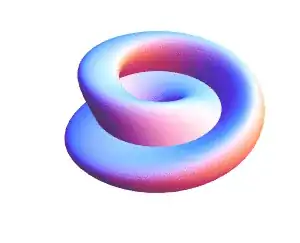

I quickly threw this animation together to demonstrate that the "figure-8" immersion of the Klein bottle admits a decomposition into two Möbius bands with the same "apparent handedness," whatever that means.

enter image description here

heropup
  • 143,828
  • Is it possible to change the animation into two Möbius bands with opposite "apparent handedness whatever that means"? – Gerard Aug 24 '14 at 13:46
5

They are only in two version if you consider the Mobius strip as being an object embedded in three-dimensional ambient space. This becomes pretty moot when you consider the Klein bottle can't be embedded into $3$-space, so instead we usually only consider the Mobius band and the Klein bottle as topological spaces, in which case they don't come with 'chiralities' or indeed orientations in this case because they are non-orientable.

To put it succinctly: All Mobius bands are homeomorphic.

Dan Rust
  • 30,973
  • Your answer is helpful. The Klein bottle kan be embedded into 3-space with an intersection, does that make a difference? – Gerard Aug 23 '14 at 20:30
  • Sure, that's called an immersion (allowed to self intersect but only 'at an angle'). I think in this case, the two halves of the Klein bottle would be a chiral pair of Mobius bands, although I'm not totally certain/would have to check. Although thinking about it, the bands themselves would not be embedded but again only immersed, so how do you define chirality in this case? – Dan Rust Aug 23 '14 at 20:35
  • It beats me, sorry ... – Gerard Aug 23 '14 at 20:55
  • The point that @DanielRust is making, loosely speaking, is that if you can allow self-intersection in an immersion of a Klein bottle in $\mathbb R^3$, then the constituent Möbius strips are also allowed to self-intersect. In such a case, then there is a deformation of a strip that changes its apparent handedness as it is immersed in 3-space. – heropup Aug 24 '14 at 02:25
  • @heropup I'm even now doubting the well-definedness of 'handedness' or 'chirality' of an embedding of a Mobius band. There are a least as many isotopy classes of embeddings of the Mobius band into $\mathbb{R}^3$ as there are knots, and ambient isotopy seems like the only reasonable tool for determining 'chirality'. So what does it even mean for an embedding of a Mobius band to be left or right handed? – Dan Rust Aug 24 '14 at 02:31
3

The paper On the number of Klein bottle types by Carlo H. Séquin (Journal of Mathematics and the Arts, Volume 7, Issue 2, 2013) provides some answers to the above issues. It is available online.

In short: Mobius bands definitely come with two different handinesses, and depending how you combine them, you can get different types of Klein bottles.
