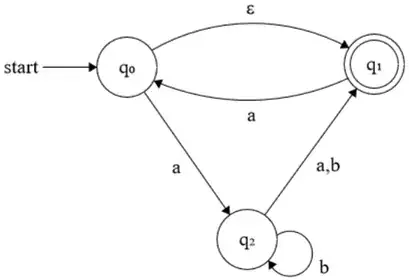

I am trying to convert the following NFA to an equivalent DFA: enter image description here

My steps:

  1. There is an $\varepsilon$-transition from $q_0$ to $q_1$, hence the set of initial states is $\{q_0,q_1\}$.
  2. From $\{q_0,q_1\}$ we can go to any state if the input is $a$, but get nowhere if the input is $b$, hence we will have the transitions $$\{q_0,q_1\}\overset{a}\longrightarrow\{q_0,q_1,q_2\} \textrm{ and }\{q_0,q_1\}\overset{b}\longrightarrow\text{Dead State}$$
  3. From $\{q_0,q_1,q_2\}$ we can go to any state if the input is $a$ and get to $q_1$ or $q_2$ if the input is $b$, hence we will have the transitions $$\{q_0,q_1,q_2\}\overset{a}\longrightarrow\{q_0,q_1,q_2\} \textrm{ and } \{q_0,q_1,q_2\}\overset{b}\longrightarrow\{q_1,q_2\}$$
  4. From $\{q_1,q_2\}$ we can go to $\{q_0,q_1\}$ if the input is $a$ and get to $q_1$ or $q_2$ if the input is $b$, hence we will have the transitions $$\{q_1,q_2\}\overset{a}\longrightarrow \{q_0,q_1\} \textrm{ and }\{q_1,q_2\}\overset{b}\longrightarrow \{q_1,q_2\}$$
  5. Any state that includes $q_1$ is an accepting state.

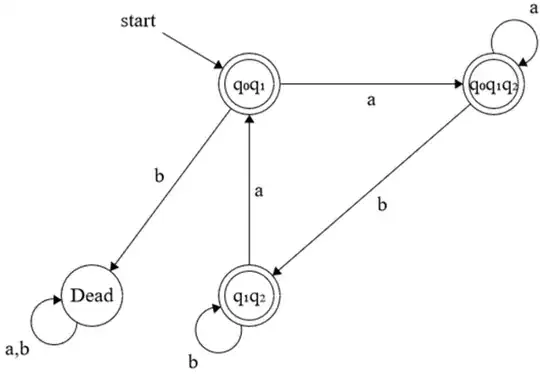

Thus, my solution looks as follows: enter image description here

Is this correct?

Thanks in advance.

Math1000
  • 38,041
Galc127
  • 4,491
