How do I create a STL file from a 2 dimensional grid of data

Question

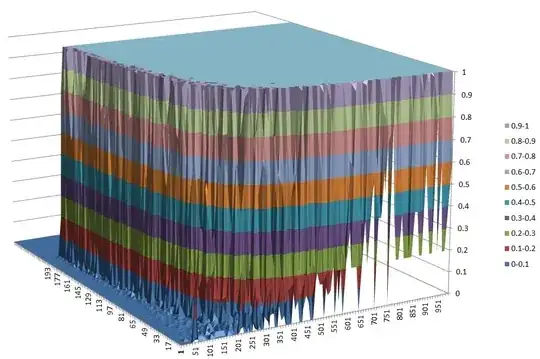

Given a large set of data, I was able to create a 3D graph in Microsoft Excel. How can I create a STL file similar to this graph to create a physical model of this graph?

Are you wanting to print the negative object (clear space below) or the part above?"
Do you have a sample of data that you used to generate it? — Aaron Havens, Apr 27 '18 at 01:49
I want a print that looks like the graph. I have the data used in creating the graph. — Eric Johnson, Apr 27 '18 at 16:22

score 1 · Answer 1 · answered Apr 27 '18 at 14:28

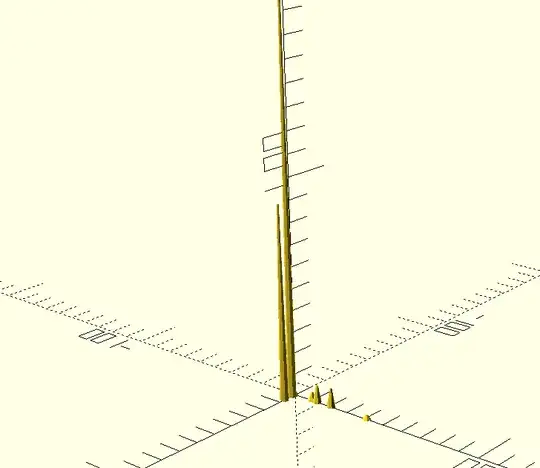

for that you can use openSCAD. Data can be represented as a multi-array and we can iterate on it via for loop

// data structure is x,y,z where z is value
arrayOfData=[[0,10,4],[0,21,9],[0,13,8],[0,41,2],[1,0,4],[2,0,180],[7,0,90]];

for(a=[0:1:6])  translate([arrayOfData[a][0], arrayOfData[a][1],0])  cylinder(arrayOfData[a][2],2,.5,false);

And where you get the model it can be intersected with a cube to get the desired shape.

score 1 · Answer 2 · answered Apr 27 '18 at 17:09

I was able to solve this using the openSCAD using the surface command.

From the openSCAD documentation:

//surface.scad
surface(file = "surface.dat", center = true, convexity = 5);
%translate([0, 0,5])cube([10,10,10], center =true);

And creating a space separated data file:

#surface.dat
10 9 8 7 6 5 5 5 5 5
9 8 7 6 6 4 3 2 1 0
8 7 6 6 4 3 2 1 0 0
7 6 6 4 3 2 1 0 0 0
6 6 4 3 2 1 1 0 0 0
6 6 3 2 1 1 1 0 0 0
6 6 2 1 1 1 1 0 0 0
6 6 1 0 0 0 0 0 0 0
3 1 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0

Then a STL can be exported of the data in openSCAD.
