Replacing (and identification) of a broken piece of the extruder

Question

I've an Ender 3 and a piece broke.

The part that is broken is on top of the Z stepper motor that guides the filament to the extruder.

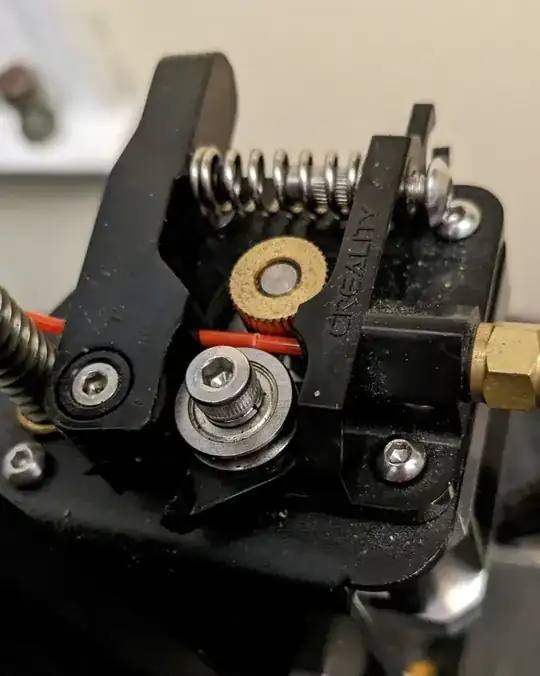

The metal "guide wheel" that hugs the filament as its pushed through, the plate beneath it broke. I dropped a socket wrench on it. -- it's just sitting there in the photo, but it's not doing it job.

Do I have to replace the whole stepper motor or can I just get the feeder thing that sits on top of the motor?

I don't know what it's called so it's tough to search for

Answer 1

Replacing the broken part

You certainly don't need to buy a whole new extruder assembly, including a stepper motor.

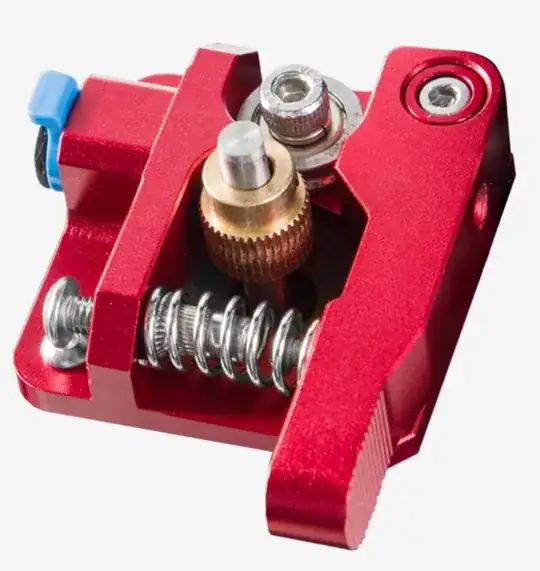

You could just buy a new extruder mechanism, and upgrade from the plastic¹ extruder, to a metal (aluminium(?)) extruder, such as the one (apparently) sold by Creality themselves, such as this², Metal Extruder Kit (Red):

However, if you just need a certain piece of the extruder (from your photo, I can't tell which part is broken), you could search for that, although, it would probably be cheaper just to buy the whole thing.

As to the name of the particular part that is broken, again, it is difficult to tell from the photo which part is actually broken. If you could add an annotated photo or more explicitly show the broken part, then it would be easier to provide a name of the actual part.

That said, after re-reading your question, I think that you may be referring to the whole black assembly - along with the spring, brass knurled nut, pulley/bearing, and associated bolts - that sits on the stepper motor... if so, then that is the extruder.

Identifying the parts of an extruder

It can be confusing knowing exactly what the names of the various parts of the extruder are - seeing as the entire extruder assembly (including the hotend and stepper motor) is often referred to as the extruder, either individually or as a whole.

Here are a couple of images that map out the various parts of the extruder assembly:

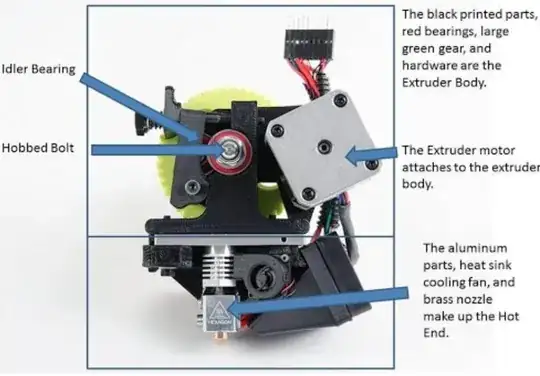

From the excellent RepRapWiki - Extruders

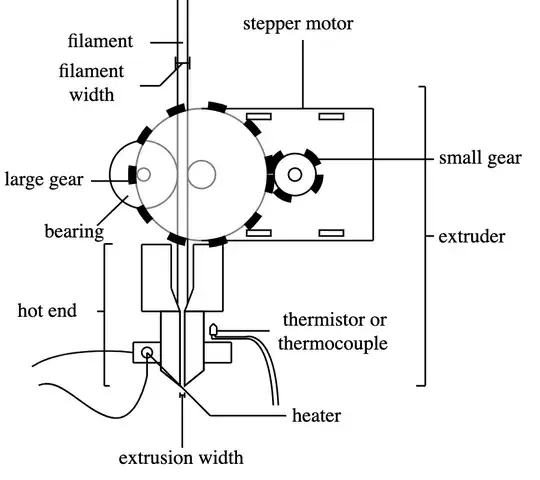

From Extruders 101: A crash course on an essential component of your 3D printer

Note that:

• The hobbed bolt, is sometimes referred to as the knurled bolt or knurled nut
• The idler wheel is (generally) just a bearing

---

Footnotes

¹ As confirmed in the comments, the extruder that comes with the non-pro version of the Ender 3 is plastic.

² I'm not recommending this seller, nor am I sure that they are genuine Creality parts... this is just an example for what you need to be looking for.

Answer 2

Sadly this is a known-weak part on all Creality extruders of this design.

The tension arm is ABS plastic and will work fine for a few months, maybe a year and will then break around where the bearing is secured to the arm.

That equates to 5-10 kg of printing before the arm breaks. Since its a higher pressure point, gluing will not succeed.

Your best option is to buy a replacement tension arm, in Aluminium. There are many options on Aliexpess, though fit and finish can be a mixed bag. I had to swipe some bolts from my original extruder-motor mount because the new one was short.

It is telling that Creality offer a metal one and not a plastic one, but sells new printers with just plastic ones.
