The filament "swells" up to the inner diameter of the feeding pipe, from the nozzle to about the end of the heat-sink. This happens after a few hours of printing. It happened using a new nozzle (0.2 mm) and a new tube - the same clog is the reason why I changed both. When this happens, the filament can't be pulled from the tube - I had to cut it open on the end to remove the filament, thus shortening the tube with each clog. The nozzle had no filament in it when I removed it and isn't clogged up.

When installing the nozzle and tube, I first screw in the nozzle, heat it up and torque it a bit, then I slide the tube in all the way.

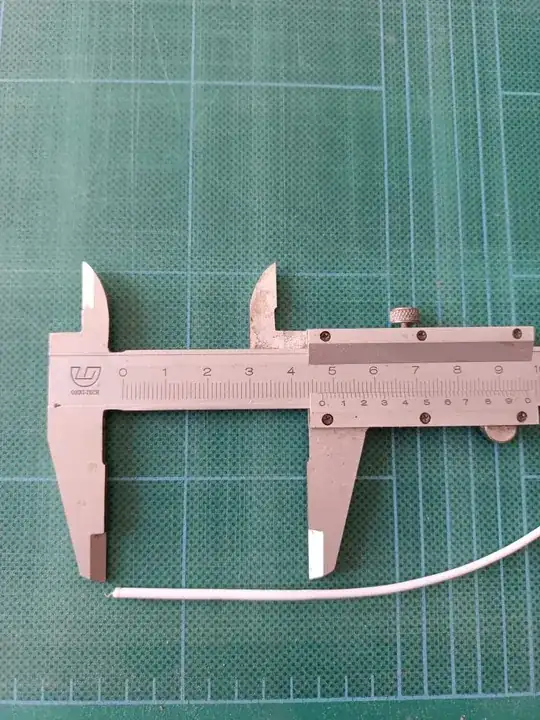

Length of thick filament

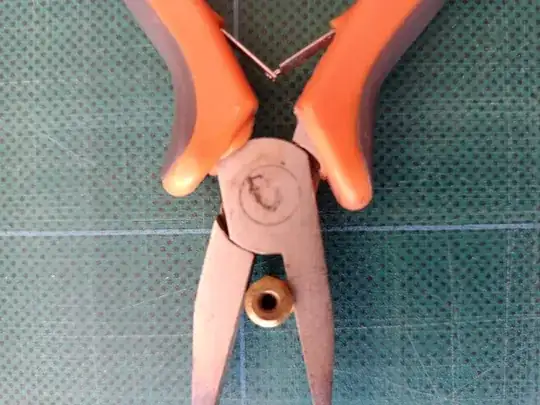

No filament in nozzle

0scar
  • 37,708
  • 12
  • 68
  • 156
TungstenX
  • 151
  • 5

1 Answers1

3

I found the issue. The fan, blowing on the heat sink is busy packing up. It must have stopped during a print (or not start at all). I now check that it is turning when the print starts (and check on it from time to time). I'll have to wait for stock to come in before I can replace it.
