I am printing 5-152 mm(L)x35 mm(W)x3 mm(T) samples using a commercial PLA filament with 0.1 mm layer height (30 total layers). The raster width is 0.4 mm while the raster angle in all layers is 0/0°. The bed temperature was 0 °C, while the printing temperature was 220 °C. The printing speed was 60 mm/s. The Z-axis compensation value is 0. I am seeing a loss of resolution, accretion, and burning of the polymer at the edges. What can be possibly causing this?

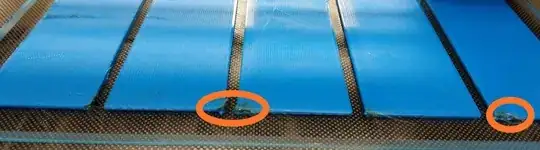

Printed samples with burned edges
