So I just got my first 3D printer the Ender 3 Pro. My nozzle is a bit too high (first image) and this is what happened after my first test print (second image).

I saved for a while to buy this and I’m really upset about this.

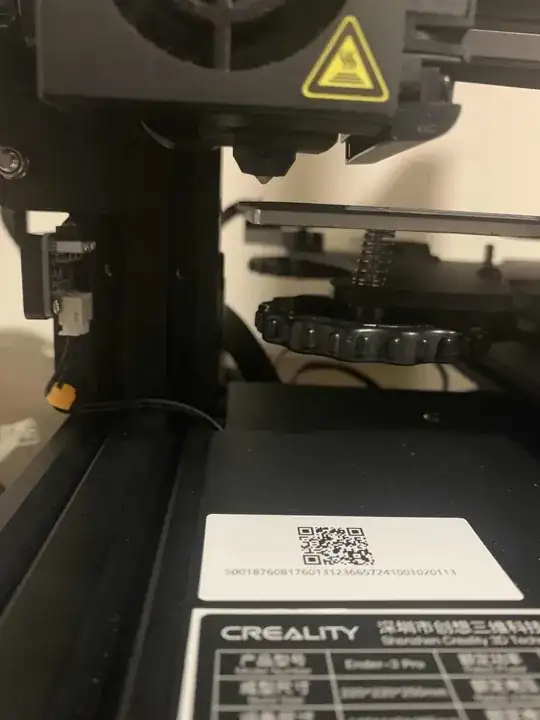

Photo of Ender 3 Pro nozzle well above the build plate

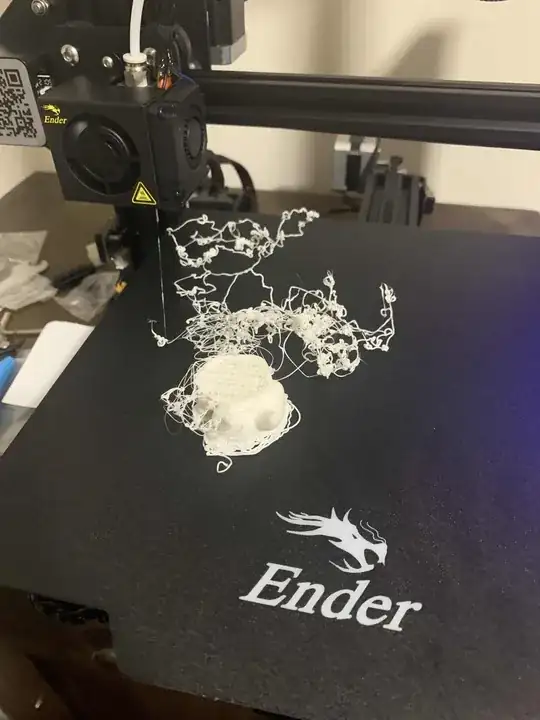

Photo of a model printed halfway through with 'spaghetti'

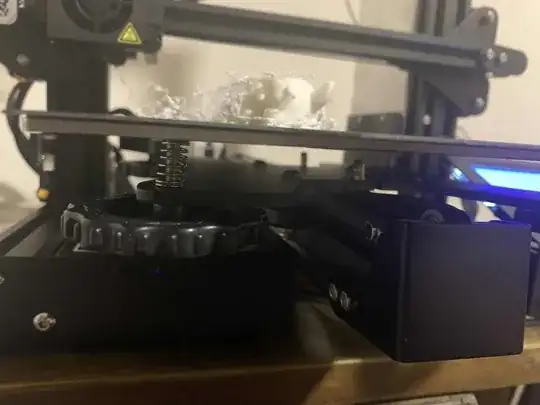

Photo of a model printed halfway through with 'spaghetti' but from the side

enter image description here

enter image description here

Sliced Water
  • 235
  • 1
  • 2
  • 7

2 Answers2

5

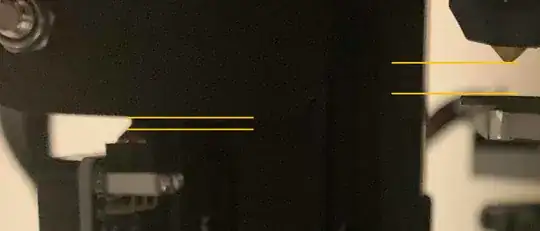

Your Z-endstop assembly is clearly too high. Referring to your own first foto you see that the switch on the Z-endstop mount is nearly touching the bottom of the X-Z mounting.

enter image description here

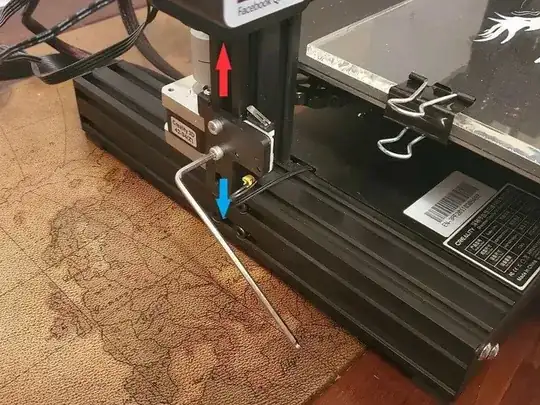

You need to adjust the whole mount by loosening the 2 hex key screws and lower the assembly (move in the direction of the blue arrow):

enter image description here Source: Larry Wood via All3DP

Before lowering the Z-endstop mount first screw in all the levelling/tramming screws under the build plate/heated bef a little and position the nozzle a little above the build plate; when the mount is fastened you can move the build plate up a little and tram the complete bed surface.

This All3D article describes the above in more detail, but the basics are covered above.

0scar
  • 37,708
  • 12
  • 68
  • 156
-1

Flash the firmware. If that doesn't fix it then you have a defective printer assuming everything else in your question and comments is correct.

Kilisi
  • 1,460
  • 7
