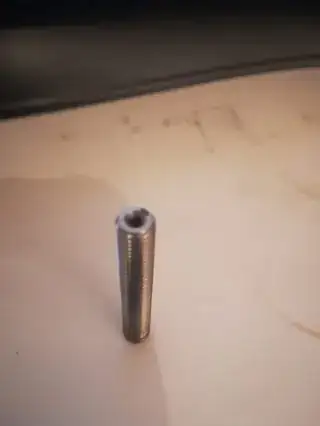

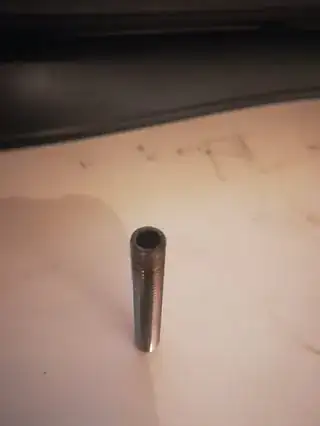

I am trying to replace a Mk8 heatbreak on my printer. But which orientation do I need to put into the heatblock? The left image or the right image? Note that this specific heatbreak is missing a PTFE tube.

enter image description here enter image description here

I quickly looked at the other questions on this forum but could not find a clear result with images.

zwep
  • 201
  • 1
  • 10

1 Answers1

1

The PTFE liner should be in contact with the nozzle, and is normally cut half a millimetre over-size to ensure that it remains in contact.

Mick
  • 3,190
  • 1
  • 11
