I have just acquired my first 3D printer, a BIQU B1. Overall I'm quite pleased with the printing results but I'm having minor defects on the Benchy test. I'm not sure what the problem is, but I guess it's related to the overhang and maybe vibrations.
My print settings are:

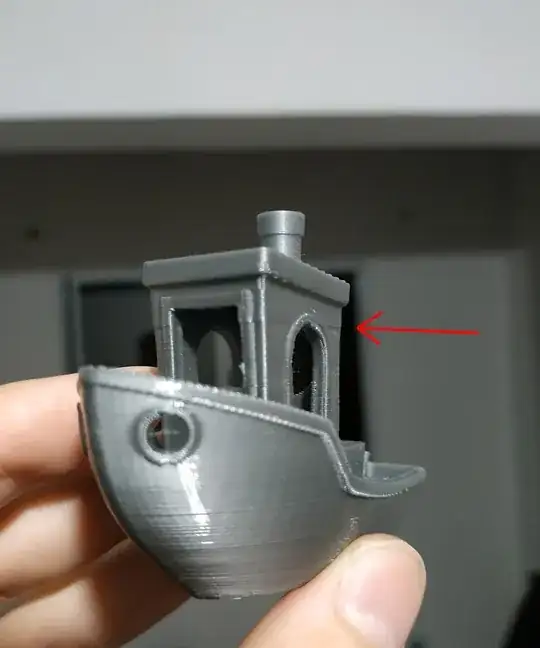

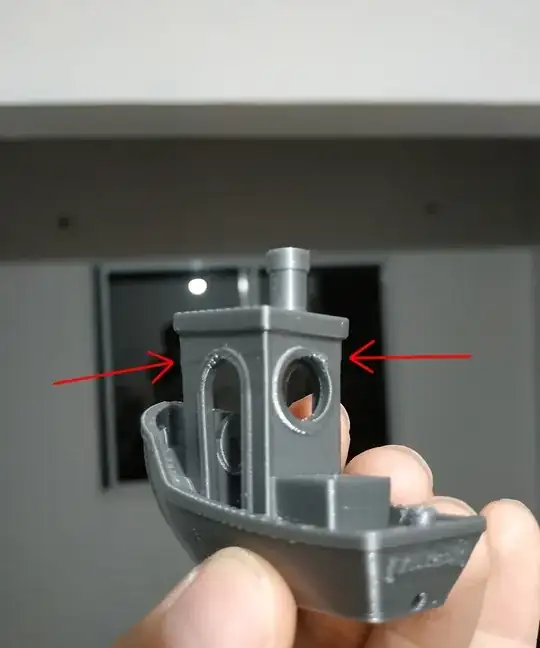

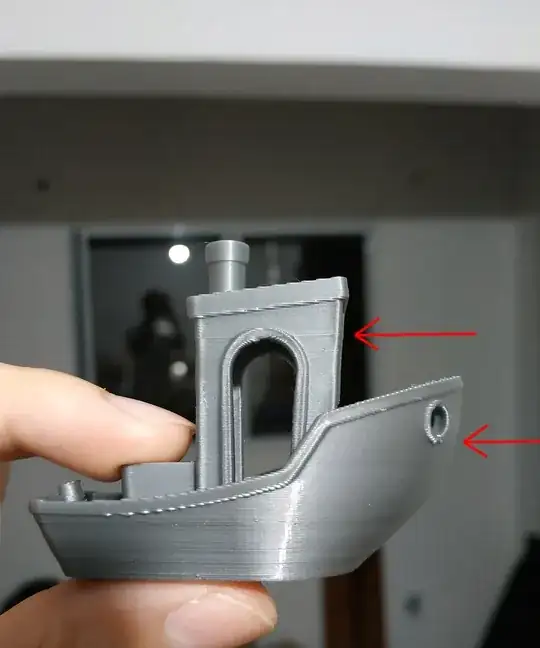

From the Benchys, it is apparent that the temperature is quite high or that there is not enough part cooling flow. This can be seen from the sagging of unsupported overhanging structures. Considering the bow of the Benchy is quite fine, the most probable cause is the temperature, usually with too less part cooling flow, the bow shows defects.
Please note that a Benchy is a gimmick that does show defects, but it isn't a calibration object, there are many other different test prints available.
After two weeks of working on different settings in different slicers, I finally have a profile which has improved the quality of my printings. It still has some overhangs, which I'm sure will improve by increasing the cooling flow like 0scar already mentioned.
Here is the profile bundle (for Prusa Slicer): Link or see this answer below.
I agree with this answer. There might be an obstruction in the cooling. I also have a B1, have you checked the included printed part that redirects the blower fans towards the part and made sure it's clear? Mine came with some warping that I had to file off.
Code from Celtic's answer:
# generated by PrusaSlicer 2.3.0+win64 on 2021-04-17 at 15:16:02 UTC
[print:BIQU B1 - Standard]
avoid_crossing_perimeters = 1
avoid_crossing_perimeters_max_detour = 75%
bottom_fill_pattern = monotonic
bottom_solid_layers = 4
bottom_solid_min_thickness = 0
bridge_acceleration = 0
bridge_angle = 0
bridge_flow_ratio = 1
bridge_speed = 50
brim_width = 0
clip_multipart_objects = 1
compatible_printers =
compatible_printers_condition =
complete_objects = 0
default_acceleration = 0
dont_support_bridges = 1
draft_shield = 0
elefant_foot_compensation = 0
ensure_vertical_shell_thickness = 0
external_perimeter_extrusion_width = 0
external_perimeter_speed = 50%
external_perimeters_first = 0
extra_perimeters = 1
extruder_clearance_height = 20
extruder_clearance_radius = 20
extrusion_width = 0.4
fill_angle = 45
fill_density = 20%
fill_pattern = cubic
first_layer_acceleration = 0
first_layer_extrusion_width = 0
first_layer_height = 0.28
first_layer_speed = 20
gap_fill_speed = 20
gcode_comments = 0
gcode_label_objects = 0
infill_acceleration = 0
infill_anchor = 600%
infill_anchor_max = 50
infill_every_layers = 1
infill_extruder = 1
infill_extrusion_width = 0.48
infill_first = 0
infill_only_where_needed = 0
infill_overlap = 30%
infill_speed = 60
inherits =
interface_shells = 0
ironing = 0
ironing_flowrate = 15%
ironing_spacing = 0.1
ironing_speed = 15
ironing_type = top
layer_height = 0.2
max_print_speed = 80
max_volumetric_speed = 0
min_skirt_length = 50
notes =
only_retract_when_crossing_perimeters = 1
ooze_prevention = 0
output_filename_format = [input_filename_base].gcode
overhangs = 1
perimeter_acceleration = 0
perimeter_extruder = 1
perimeter_extrusion_width = 0
perimeter_speed = 50
perimeters = 4
post_process =
print_settings_id =
raft_layers = 0
resolution = 0
seam_position = aligned
single_extruder_multi_material_priming = 1
skirt_distance = 5
skirt_height = 1
skirts = 1
slice_closing_radius = 0.049
small_perimeter_speed = 40%
solid_infill_below_area = 70
solid_infill_every_layers = 0
solid_infill_extruder = 1
solid_infill_extrusion_width = 0
solid_infill_speed = 50%
spiral_vase = 0
standby_temperature_delta = -5
support_material = 0
support_material_angle = 0
support_material_auto = 1
support_material_buildplate_only = 0
support_material_contact_distance = 0.2
support_material_enforce_layers = 0
support_material_extruder = 1
support_material_extrusion_width = 0.35
support_material_interface_contact_loops = 0
support_material_interface_extruder = 1
support_material_interface_layers = 3
support_material_interface_spacing = 0
support_material_interface_speed = 100%
support_material_pattern = rectilinear
support_material_spacing = 2.5
support_material_speed = 60
support_material_synchronize_layers = 0
support_material_threshold = 0
support_material_with_sheath = 1
support_material_xy_spacing = 50%
thin_walls = 0
threads = 24
top_fill_pattern = monotonic
top_infill_extrusion_width = 0
top_solid_infill_speed = 80%
top_solid_layers = 4
top_solid_min_thickness = 0
travel_speed = 150
wipe_tower = 0
wipe_tower_bridging = 10
wipe_tower_no_sparse_layers = 0
wipe_tower_rotation_angle = 0
wipe_tower_width = 60
wipe_tower_x = 180
wipe_tower_y = 140
xy_size_compensation = 0
[filament:BIQU B1 - GSDT - PLA+ Silver]
bed_temperature = 50
bridge_fan_speed = 100
compatible_printers =
compatible_printers_condition =
compatible_prints =
compatible_prints_condition =
cooling = 1
disable_fan_first_layers = 1
end_filament_gcode = "; Filament-specific end gcode \n;END gcode for filament\n"
extrusion_multiplier = 1
fan_always_on = 1
fan_below_layer_time = 100
filament_colour = #8B8B8B
filament_cooling_final_speed = 3.4
filament_cooling_initial_speed = 2.2
filament_cooling_moves = 4
filament_cost = 1000
filament_density = 1.3
filament_deretract_speed = nil
filament_diameter = 1.75
filament_load_time = 0
filament_loading_speed = 28
filament_loading_speed_start = 3
filament_max_volumetric_speed = 0
filament_minimal_purge_on_wipe_tower = 15
filament_notes = ""
filament_ramming_parameters = "120 100 6.6 6.8 7.2 7.6 7.9 8.2 8.7 9.4 9.9 10.0| 0.05 6.6 0.45 6.8 0.95 7.8 1.45 8.3 1.95 9.7 2.45 10 2.95 7.6 3.45 7.6 3.95 7.6 4.45 7.6 4.95 7.6"
filament_retract_before_travel = nil
filament_retract_before_wipe = nil
filament_retract_layer_change = nil
filament_retract_length = nil
filament_retract_lift = nil
filament_retract_lift_above = nil
filament_retract_lift_below = nil
filament_retract_restart_extra = nil
filament_retract_speed = nil
filament_settings_id = ""
filament_soluble = 0
filament_spool_weight = 1000
filament_toolchange_delay = 0
filament_type = PLA
filament_unload_time = 0
filament_unloading_speed = 90
filament_unloading_speed_start = 100
filament_vendor = (Unknown)
filament_wipe = nil
first_layer_bed_temperature = 50
first_layer_temperature = 195
full_fan_speed_layer = 4
inherits =
max_fan_speed = 100
min_fan_speed = 100
min_print_speed = 10
slowdown_below_layer_time = 10
start_filament_gcode = "; Filament gcode\n"
temperature = 195
[filament:BIQU B1 - PETG]
bed_temperature = 70
bridge_fan_speed = 35
compatible_printers =
compatible_printers_condition =
compatible_prints =
compatible_prints_condition =
cooling = 1
disable_fan_first_layers = 3
end_filament_gcode = "; Filament-specific end gcode \n;END gcode for filament\n"
extrusion_multiplier = 1
fan_always_on = 1
fan_below_layer_time = 100
filament_colour = #29B2B2
filament_cooling_final_speed = 3.4
filament_cooling_initial_speed = 2.2
filament_cooling_moves = 4
filament_cost = 0
filament_density = 0
filament_deretract_speed = nil
filament_diameter = 1.75
filament_load_time = 0
filament_loading_speed = 28
filament_loading_speed_start = 3
filament_max_volumetric_speed = 0
filament_minimal_purge_on_wipe_tower = 15
filament_notes = ""
filament_ramming_parameters = "120 100 6.6 6.8 7.2 7.6 7.9 8.2 8.7 9.4 9.9 10.0| 0.05 6.6 0.45 6.8 0.95 7.8 1.45 8.3 1.95 9.7 2.45 10 2.95 7.6 3.45 7.6 3.95 7.6 4.45 7.6 4.95 7.6"
filament_retract_before_travel = nil
filament_retract_before_wipe = nil
filament_retract_layer_change = nil
filament_retract_length = 4
filament_retract_lift = nil
filament_retract_lift_above = nil
filament_retract_lift_below = nil
filament_retract_restart_extra = nil
filament_retract_speed = nil
filament_settings_id = ""
filament_soluble = 0
filament_spool_weight = 0
filament_toolchange_delay = 0
filament_type = PET
filament_unload_time = 0
filament_unloading_speed = 90
filament_unloading_speed_start = 100
filament_vendor = (Unknown)
filament_wipe = nil
first_layer_bed_temperature = 75
first_layer_temperature = 235
full_fan_speed_layer = 0
inherits =
max_fan_speed = 35
min_fan_speed = 35
min_print_speed = 15
slowdown_below_layer_time = 20
start_filament_gcode = "; Filament gcode\n"
temperature = 235
[printer:BIQU B1 (No Z Hop)]
bed_custom_model =
bed_custom_texture =
bed_shape = 0x0,235x0,235x235,0x235
before_layer_gcode = ;LAYER:[layer_num]
between_objects_gcode =
color_change_gcode = M600
cooling_tube_length = 5
cooling_tube_retraction = 91.5
default_filament_profile = ""
default_print_profile =
deretract_speed = 0
end_gcode = ;BIQU Default End Gcode\nG91 ;Relative positioning\nG1 E-2 F2700 ;Retract a bit\nG1 E-2 Z0.2 F2400 ;Retract a bit more and raise Z\nG1 X5 Y5 F3000 ;Wipe out\nG1 Z10;Raise Z by 10mm\nG90 ;Return to absolute positionning\nG1 X0 Y235 ;TaDaaaa\nM106 S0 ;Turn-off fan\nM104 S0 ;Turn-off hotend\nM140 S0 ;Turn-off bed\nM84 X Y E ;Disable all steppers but Z
extra_loading_move = -2
extruder_colour = ""
extruder_offset = 0x0
gcode_flavor = marlin
high_current_on_filament_swap = 0
host_type = octoprint
inherits =
layer_gcode =
machine_limits_usage = emit_to_gcode
machine_max_acceleration_e = 5000,5000
machine_max_acceleration_extruding = 500,1250
machine_max_acceleration_retracting = 1000,1250
machine_max_acceleration_x = 500,1000
machine_max_acceleration_y = 500,1000
machine_max_acceleration_z = 100,200
machine_max_feedrate_e = 75,120
machine_max_feedrate_x = 250,200
machine_max_feedrate_y = 250,200
machine_max_feedrate_z = 10,12
machine_max_jerk_e = 2.5,2.5
machine_max_jerk_x = 8,10
machine_max_jerk_y = 8,10
machine_max_jerk_z = 0.2,0.4
machine_min_extruding_rate = 0,0
machine_min_travel_rate = 0,0
max_layer_height = 0
max_print_height = 270
min_layer_height = 0.07
nozzle_diameter = 0.4
parking_pos_retraction = 92
pause_print_gcode = M601
print_host =
printer_model =
printer_notes =
printer_settings_id =
printer_technology = FFF
printer_variant =
printer_vendor =
printhost_apikey =
printhost_cafile =
remaining_times = 0
retract_before_travel = 1.5
retract_before_wipe = 0%
retract_layer_change = 0
retract_length = 7
retract_length_toolchange = 10
retract_lift = 0
retract_lift_above = 0
retract_lift_below = 0
retract_restart_extra = 0
retract_restart_extra_toolchange = 0
retract_speed = 70
silent_mode = 0
single_extruder_multi_material = 0
start_gcode = M220 S100 ;Reset Feedrate\nM221 S100 ;Reset Flowrate\nG28 ;Home\nG92 E0 ;Reset Extruder\nG1 Z2.0 F3000 ;Move Z Axis up\nM109 S{first_layer_temperature[0]}; Preheat hotend\nG1 X10.1 Y20 Z0.28 F5000.0 ;Move to start position\nG1 X10.1 Y200.0 Z0.28 F1500.0 E15 ;Draw the first line\nG1 X10.4 Y200.0 Z0.28 F5000.0 ;Move to side a little\nG1 X10.4 Y20 Z0.28 F1500.0 E30 ;Draw the second line\nG92 E0 ;Reset Extruder\nG1 Z2.0 F3000 ;Move Z Axis up
template_custom_gcode =
thumbnails =
toolchange_gcode =
use_firmware_retraction = 0
use_relative_e_distances = 0
use_volumetric_e = 0
variable_layer_height = 0
wipe = 0
z_offset = 0
[printer:BIQU B1 (With Z Hop)]
bed_custom_model =
bed_custom_texture =
bed_shape = 0x0,235x0,235x235,0x235
before_layer_gcode = ;LAYER:[layer_num]
between_objects_gcode =
color_change_gcode = M600
cooling_tube_length = 5
cooling_tube_retraction = 91.5
default_filament_profile = ""
default_print_profile =
deretract_speed = 0
end_gcode = ;BIQU Default End Gcode\nG91 ;Relative positioning\nG1 E-2 F2700 ;Retract a bit\nG1 E-2 Z0.2 F2400 ;Retract a bit more and raise Z\nG1 X5 Y5 F3000 ;Wipe out\nG1 Z10;Raise Z by 10mm\nG90 ;Return to absolute positionning\nG1 X0 Y235 ;TaDaaaa\nM106 S0 ;Turn-off fan\nM104 S0 ;Turn-off hotend\nM140 S0 ;Turn-off bed\nM84 X Y E ;Disable all steppers but Z
extra_loading_move = -2
extruder_colour = ""
extruder_offset = 0x0
gcode_flavor = marlin
high_current_on_filament_swap = 0
host_type = octoprint
inherits =
layer_gcode =
machine_limits_usage = emit_to_gcode
machine_max_acceleration_e = 5000,5000
machine_max_acceleration_extruding = 500,1250
machine_max_acceleration_retracting = 1000,1250
machine_max_acceleration_x = 500,1000
machine_max_acceleration_y = 500,1000
machine_max_acceleration_z = 100,200
machine_max_feedrate_e = 75,120
machine_max_feedrate_x = 250,200
machine_max_feedrate_y = 250,200
machine_max_feedrate_z = 10,12
machine_max_jerk_e = 2.5,2.5
machine_max_jerk_x = 8,10
machine_max_jerk_y = 8,10
machine_max_jerk_z = 0.2,0.4
machine_min_extruding_rate = 0,0
machine_min_travel_rate = 0,0
max_layer_height = 0
max_print_height = 270
min_layer_height = 0.07
nozzle_diameter = 0.4
parking_pos_retraction = 92
pause_print_gcode = M601
print_host =
printer_model =
printer_notes =
printer_settings_id =
printer_technology = FFF
printer_variant =
printer_vendor =
printhost_apikey =
printhost_cafile =
remaining_times = 0
retract_before_travel = 1.5
retract_before_wipe = 0%
retract_layer_change = 0
retract_length = 7
retract_length_toolchange = 10
retract_lift = 1
retract_lift_above = 0
retract_lift_below = 0
retract_restart_extra = 0
retract_restart_extra_toolchange = 0
retract_speed = 70
silent_mode = 0
single_extruder_multi_material = 0
start_gcode = M220 S100 ;Reset Feedrate\nM221 S100 ;Reset Flowrate\nG28 ;Home\nG92 E0 ;Reset Extruder\nG1 Z2.0 F3000 ;Move Z Axis up\nM109 S{first_layer_temperature[0]}; Preheat hotend\nG1 X10.1 Y20 Z0.28 F5000.0 ;Move to start position\nG1 X10.1 Y200.0 Z0.28 F1500.0 E15 ;Draw the first line\nG1 X10.4 Y200.0 Z0.28 F5000.0 ;Move to side a little\nG1 X10.4 Y20 Z0.28 F1500.0 E30 ;Draw the second line\nG92 E0 ;Reset Extruder\nG1 Z2.0 F3000 ;Move Z Axis up
template_custom_gcode =
thumbnails =
toolchange_gcode =
use_firmware_retraction = 0
use_relative_e_distances = 0
use_volumetric_e = 0
variable_layer_height = 0
wipe = 0
z_offset = 0
[printer:BIQU B1 Alpha v1]
bed_custom_model =
bed_custom_texture =
bed_shape = 0x0,235x0,235x235,0x235
before_layer_gcode = ;LAYER:[layer_num]
between_objects_gcode =
color_change_gcode = M600
cooling_tube_length = 5
cooling_tube_retraction = 91.5
default_filament_profile = ""
default_print_profile =
deretract_speed = 35
end_gcode = ;BIQU Default End Gcode\nG91 ;Relative positioning\nG1 E-2 F2700 ;Retract a bit\nG1 E-2 Z0.2 F2400 ;Retract a bit more and raise Z\nG1 X5 Y5 F3000 ;Wipe out\nG1 Z10;Raise Z by 10mm\nG90 ;Return to absolute positionning\nG1 X0 Y235 ;TaDaaaa\nM106 S0 ;Turn-off fan\nM104 S0 ;Turn-off hotend\nM140 S0 ;Turn-off bed\nM84 X Y E ;Disable all steppers but Z
extra_loading_move = -2
extruder_colour = ""
extruder_offset = 0x0
gcode_flavor = marlin
high_current_on_filament_swap = 0
host_type = octoprint
inherits =
layer_gcode =
machine_limits_usage = emit_to_gcode
machine_max_acceleration_e = 5000,5000
machine_max_acceleration_extruding = 500,1250
machine_max_acceleration_retracting = 1000,1250
machine_max_acceleration_x = 500,1000
machine_max_acceleration_y = 500,1000
machine_max_acceleration_z = 100,200
machine_max_feedrate_e = 75,120
machine_max_feedrate_x = 500,200
machine_max_feedrate_y = 500,200
machine_max_feedrate_z = 10,12
machine_max_jerk_e = 5,2.5
machine_max_jerk_x = 8,10
machine_max_jerk_y = 8,10
machine_max_jerk_z = 0.4,0.4
machine_min_extruding_rate = 0,0
machine_min_travel_rate = 0,0
max_layer_height = 0
max_print_height = 270
min_layer_height = 0.07
nozzle_diameter = 0.4
parking_pos_retraction = 92
pause_print_gcode = M601
print_host =
printer_model =
printer_notes =
printer_settings_id =
printer_technology = FFF
printer_variant =
printer_vendor =
printhost_apikey =
printhost_cafile =
remaining_times = 0
retract_before_travel = 1.5
retract_before_wipe = 0%
retract_layer_change = 0
retract_length = 3
retract_length_toolchange = 10
retract_lift = 0
retract_lift_above = 0
retract_lift_below = 0
retract_restart_extra = 0
retract_restart_extra_toolchange = 0
retract_speed = 70
silent_mode = 0
single_extruder_multi_material = 0
start_gcode = M220 S100 ;Reset Feedrate\nM221 S100 ;Reset Flowrate\nG28 ;Home\nG92 E0 ;Reset Extruder\nG1 Z2.0 F3000 ;Move Z Axis up\nM109 S{first_layer_temperature[0]}; Preheat hotend\nG1 X10.1 Y20 Z0.28 F5000.0 ;Move to start position\nG1 X10.1 Y200.0 Z0.28 F1500.0 E15 ;Draw the first line\nG1 X10.4 Y200.0 Z0.28 F5000.0 ;Move to side a little\nG1 X10.4 Y20 Z0.28 F1500.0 E30 ;Draw the second line\nG92 E0 ;Reset Extruder\nG1 Z2.0 F3000 ;Move Z Axis up
template_custom_gcode =
thumbnails =
toolchange_gcode =
use_firmware_retraction = 0
use_relative_e_distances = 0
use_volumetric_e = 0
variable_layer_height = 0
wipe = 0
z_offset = 0
[printer:BIQU B1 Alpha v2]
bed_custom_model =
bed_custom_texture =
bed_shape = 0x0,235x0,235x235,0x235
before_layer_gcode = ;LAYER:[layer_num]
between_objects_gcode =
color_change_gcode = M600
cooling_tube_length = 5
cooling_tube_retraction = 91.5
default_filament_profile = ""
default_print_profile =
deretract_speed = 35
end_gcode = ;BIQU Default End Gcode\nG91 ;Relative positioning\nG1 E-2 F2700 ;Retract a bit\nG1 E-2 Z0.2 F2400 ;Retract a bit more and raise Z\nG1 X5 Y5 F3000 ;Wipe out\nG1 Z10;Raise Z by 10mm\nG90 ;Return to absolute positionning\nG1 X0 Y235 ;TaDaaaa\nM106 S0 ;Turn-off fan\nM104 S0 ;Turn-off hotend\nM140 S0 ;Turn-off bed\nM84 X Y E ;Disable all steppers but Z
extra_loading_move = -2
extruder_colour = ""
extruder_offset = 0x0
gcode_flavor = marlin
high_current_on_filament_swap = 0
host_type = octoprint
inherits =
layer_gcode =
machine_limits_usage = emit_to_gcode
machine_max_acceleration_e = 5000,5000
machine_max_acceleration_extruding = 500,1250
machine_max_acceleration_retracting = 1000,1250
machine_max_acceleration_x = 500,1000
machine_max_acceleration_y = 500,1000
machine_max_acceleration_z = 100,200
machine_max_feedrate_e = 75,120
machine_max_feedrate_x = 500,200
machine_max_feedrate_y = 500,200
machine_max_feedrate_z = 10,12
machine_max_jerk_e = 5,2.5
machine_max_jerk_x = 8,10
machine_max_jerk_y = 8,10
machine_max_jerk_z = 0.4,0.4
machine_min_extruding_rate = 0,0
machine_min_travel_rate = 0,0
max_layer_height = 0
max_print_height = 270
min_layer_height = 0.07
nozzle_diameter = 0.4
parking_pos_retraction = 92
pause_print_gcode = M601
print_host =
printer_model =
printer_notes =
printer_settings_id =
printer_technology = FFF
printer_variant =
printer_vendor =
printhost_apikey =
printhost_cafile =
remaining_times = 0
retract_before_travel = 1.5
retract_before_wipe = 0%
retract_layer_change = 0
retract_length = 7
retract_length_toolchange = 10
retract_lift = 0
retract_lift_above = 0
retract_lift_below = 0
retract_restart_extra = 0
retract_restart_extra_toolchange = 0
retract_speed = 70
silent_mode = 0
single_extruder_multi_material = 0
start_gcode = M220 S100 ;Reset Feedrate\nM221 S100 ;Reset Flowrate\nG28 ;Home\nG92 E0 ;Reset Extruder\nG1 Z2.0 F3000 ;Move Z Axis up\nM109 S{first_layer_temperature[0]}; Preheat hotend\nG1 X10.1 Y20 Z0.28 F5000.0 ;Move to start position\nG1 X10.1 Y200.0 Z0.28 F1500.0 E15 ;Draw the first line\nG1 X10.4 Y200.0 Z0.28 F5000.0 ;Move to side a little\nG1 X10.4 Y20 Z0.28 F1500.0 E30 ;Draw the second line\nG92 E0 ;Reset Extruder\nG1 Z2.0 F3000 ;Move Z Axis up
template_custom_gcode =
thumbnails =
toolchange_gcode =
use_firmware_retraction = 0
use_relative_e_distances = 0
use_volumetric_e = 0
variable_layer_height = 0
wipe = 0
z_offset = 0
[printer:BIQU B1 Alpha v3]
bed_custom_model =
bed_custom_texture =
bed_shape = 0x0,235x0,235x235,0x235
before_layer_gcode = ;LAYER:[layer_num]
between_objects_gcode =
color_change_gcode = M600
cooling_tube_length = 5
cooling_tube_retraction = 91.5
default_filament_profile = ""
default_print_profile =
deretract_speed = 35
end_gcode = ;BIQU Default End Gcode\nG91 ;Relative positioning\nG1 E-2 F2700 ;Retract a bit\nG1 E-2 Z0.2 F2400 ;Retract a bit more and raise Z\nG1 X5 Y5 F3000 ;Wipe out\nG1 Z10;Raise Z by 10mm\nG90 ;Return to absolute positionning\nG1 X0 Y235 ;TaDaaaa\nM106 S0 ;Turn-off fan\nM104 S0 ;Turn-off hotend\nM140 S0 ;Turn-off bed\nM84 X Y E ;Disable all steppers but Z
extra_loading_move = -2
extruder_colour = ""
extruder_offset = 0x0
gcode_flavor = marlin
high_current_on_filament_swap = 0
host_type = octoprint
inherits =
layer_gcode =
machine_limits_usage = emit_to_gcode
machine_max_acceleration_e = 5000,5000
machine_max_acceleration_extruding = 500,1250
machine_max_acceleration_retracting = 1000,1250
machine_max_acceleration_x = 500,1000
machine_max_acceleration_y = 500,1000
machine_max_acceleration_z = 100,200
machine_max_feedrate_e = 75,120
machine_max_feedrate_x = 500,200
machine_max_feedrate_y = 500,200
machine_max_feedrate_z = 10,12
machine_max_jerk_e = 5,2.5
machine_max_jerk_x = 8,10
machine_max_jerk_y = 8,10
machine_max_jerk_z = 0.4,0.4
machine_min_extruding_rate = 0,0
machine_min_travel_rate = 0,0
max_layer_height = 0
max_print_height = 270
min_layer_height = 0.07
nozzle_diameter = 0.4
parking_pos_retraction = 92
pause_print_gcode = M601
print_host =
printer_model =
printer_notes =
printer_settings_id =
printer_technology = FFF
printer_variant =
printer_vendor =
printhost_apikey =
printhost_cafile =
remaining_times = 0
retract_before_travel = 1.5
retract_before_wipe = 0%
retract_layer_change = 0
retract_length = 4
retract_length_toolchange = 10
retract_lift = 0
retract_lift_above = 0
retract_lift_below = 0
retract_restart_extra = 0
retract_restart_extra_toolchange = 0
retract_speed = 70
silent_mode = 0
single_extruder_multi_material = 0
start_gcode = M220 S100 ;Reset Feedrate\nM221 S100 ;Reset Flowrate\nG28 ;Home\nG92 E0 ;Reset Extruder\nG1 Z2.0 F3000 ;Move Z Axis up\nM109 S{first_layer_temperature[0]}; Preheat hotend\nG1 X10.1 Y20 Z0.28 F5000.0 ;Move to start position\nG1 X10.1 Y200.0 Z0.28 F1500.0 E15 ;Draw the first line\nG1 X10.4 Y200.0 Z0.28 F5000.0 ;Move to side a little\nG1 X10.4 Y20 Z0.28 F1500.0 E30 ;Draw the second line\nG92 E0 ;Reset Extruder\nG1 Z2.0 F3000 ;Move Z Axis up
template_custom_gcode =
thumbnails =
toolchange_gcode =
use_firmware_retraction = 0
use_relative_e_distances = 0
use_volumetric_e = 0
variable_layer_height = 0
wipe = 0
z_offset = 0
[printer:BIQU B1 Alpha v4]
bed_custom_model =
bed_custom_texture =
bed_shape = 0x0,235x0,235x235,0x235
before_layer_gcode = ;LAYER:[layer_num]
between_objects_gcode =
color_change_gcode = M600
cooling_tube_length = 5
cooling_tube_retraction = 91.5
default_filament_profile = ""
default_print_profile =
deretract_speed = 35
end_gcode = ;BIQU Default End Gcode\nG91 ;Relative positioning\nG1 E-2 F2700 ;Retract a bit\nG1 E-2 Z0.2 F2400 ;Retract a bit more and raise Z\nG1 X5 Y5 F3000 ;Wipe out\nG1 Z10;Raise Z by 10mm\nG90 ;Return to absolute positionning\nG1 X0 Y235 ;TaDaaaa\nM106 S0 ;Turn-off fan\nM104 S0 ;Turn-off hotend\nM140 S0 ;Turn-off bed\nM84 X Y E ;Disable all steppers but Z
extra_loading_move = -2
extruder_colour = ""
extruder_offset = 0x0
gcode_flavor = marlin
high_current_on_filament_swap = 0
host_type = octoprint
inherits =
layer_gcode =
machine_limits_usage = emit_to_gcode
machine_max_acceleration_e = 5000,5000
machine_max_acceleration_extruding = 500,1250
machine_max_acceleration_retracting = 1000,1250
machine_max_acceleration_x = 500,1000
machine_max_acceleration_y = 500,1000
machine_max_acceleration_z = 100,200
machine_max_feedrate_e = 75,120
machine_max_feedrate_x = 500,200
machine_max_feedrate_y = 500,200
machine_max_feedrate_z = 10,12
machine_max_jerk_e = 5,2.5
machine_max_jerk_x = 8,10
machine_max_jerk_y = 8,10
machine_max_jerk_z = 0.4,0.4
machine_min_extruding_rate = 0,0
machine_min_travel_rate = 0,0
max_layer_height = 0
max_print_height = 270
min_layer_height = 0.07
nozzle_diameter = 0.4
parking_pos_retraction = 92
pause_print_gcode = M601
print_host =
printer_model =
printer_notes =
printer_settings_id =
printer_technology = FFF
printer_variant =
printer_vendor =
printhost_apikey =
printhost_cafile =
remaining_times = 0
retract_before_travel = 1.5
retract_before_wipe = 0%
retract_layer_change = 0
retract_length = 4
retract_length_toolchange = 10
retract_lift = 0
retract_lift_above = 0
retract_lift_below = 0
retract_restart_extra = 0
retract_restart_extra_toolchange = 0
retract_speed = 70
silent_mode = 0
single_extruder_multi_material = 0
start_gcode = M220 S100 ;Reset Feedrate\nM221 S100 ;Reset Flowrate\nG28 ;Home\nG92 E0 ;Reset Extruder\nG1 Z2.0 F3000 ;Move Z Axis up\nM109 S{first_layer_temperature[0]}; Preheat hotend\nG1 X10.1 Y20 Z0.28 F5000.0 ;Move to start position\nG1 X10.1 Y200.0 Z0.28 F1500.0 E15 ;Draw the first line\nG1 X10.4 Y200.0 Z0.28 F5000.0 ;Move to side a little\nG1 X10.4 Y20 Z0.28 F1500.0 E30 ;Draw the second line\nG92 E0 ;Reset Extruder\nG1 Z2.0 F3000 ;Move Z Axis up
template_custom_gcode =
thumbnails =
toolchange_gcode =
use_firmware_retraction = 0
use_relative_e_distances = 0
use_volumetric_e = 0
variable_layer_height = 0
wipe = 0
z_offset = 0
[printer:BIQU B1 Beta v1]
bed_custom_model =
bed_custom_texture =
bed_shape = 0x0,235x0,235x235,0x235
before_layer_gcode = ;LAYER:[layer_num]
between_objects_gcode =
color_change_gcode = M600
cooling_tube_length = 5
cooling_tube_retraction = 91.5
default_filament_profile = ""
default_print_profile =
deretract_speed = 0
end_gcode = ;BIQU Default End Gcode\nG91 ;Relative positioning\nG1 E-2 F2700 ;Retract a bit\nG1 E-2 Z0.2 F2400 ;Retract a bit more and raise Z\nG1 X5 Y5 F3000 ;Wipe out\nG1 Z10;Raise Z by 10mm\nG90 ;Return to absolute positionning\nG1 X0 Y235 ;TaDaaaa\nM106 S0 ;Turn-off fan\nM104 S0 ;Turn-off hotend\nM140 S0 ;Turn-off bed\nM84 X Y E ;Disable all steppers but Z
extra_loading_move = -2
extruder_colour = ""
extruder_offset = 0x0
gcode_flavor = marlin
high_current_on_filament_swap = 0
host_type = octoprint
inherits =
layer_gcode =
machine_limits_usage = emit_to_gcode
machine_max_acceleration_e = 5000,5000
machine_max_acceleration_extruding = 500,1250
machine_max_acceleration_retracting = 1000,1250
machine_max_acceleration_x = 500,1000
machine_max_acceleration_y = 500,1000
machine_max_acceleration_z = 100,200
machine_max_feedrate_e = 75,120
machine_max_feedrate_x = 250,200
machine_max_feedrate_y = 250,200
machine_max_feedrate_z = 10,12
machine_max_jerk_e = 2.5,2.5
machine_max_jerk_x = 8,10
machine_max_jerk_y = 8,10
machine_max_jerk_z = 0.2,0.4
machine_min_extruding_rate = 0,0
machine_min_travel_rate = 0,0
max_layer_height = 0
max_print_height = 270
min_layer_height = 0.07
nozzle_diameter = 0.4
parking_pos_retraction = 92
pause_print_gcode = M601
print_host =
printer_model =
printer_notes =
printer_settings_id =
printer_technology = FFF
printer_variant =
printer_vendor =
printhost_apikey =
printhost_cafile =
remaining_times = 0
retract_before_travel = 1.5
retract_before_wipe = 0%
retract_layer_change = 0
retract_length = 7
retract_length_toolchange = 10
retract_lift = 0
retract_lift_above = 0
retract_lift_below = 0
retract_restart_extra = 0
retract_restart_extra_toolchange = 0
retract_speed = 70
silent_mode = 0
single_extruder_multi_material = 0
start_gcode = M220 S100 ;Reset Feedrate\nM221 S100 ;Reset Flowrate\nG28 ;Home\nG92 E0 ;Reset Extruder\nG1 Z2.0 F3000 ;Move Z Axis up\nM109 S{first_layer_temperature[0]}; Preheat hotend\nG1 X10.1 Y20 Z0.28 F5000.0 ;Move to start position\nG1 X10.1 Y200.0 Z0.28 F1500.0 E15 ;Draw the first line\nG1 X10.4 Y200.0 Z0.28 F5000.0 ;Move to side a little\nG1 X10.4 Y20 Z0.28 F1500.0 E30 ;Draw the second line\nG92 E0 ;Reset Extruder\nG1 Z2.0 F3000 ;Move Z Axis up
template_custom_gcode =
thumbnails =
toolchange_gcode =
use_firmware_retraction = 0
use_relative_e_distances = 0
use_volumetric_e = 0
variable_layer_height = 0
wipe = 0
z_offset = 0
[printer:BIQU B1 Beta v2]
bed_custom_model =
bed_custom_texture =
bed_shape = 0x0,235x0,235x235,0x235
before_layer_gcode = ;LAYER:[layer_num]
between_objects_gcode =
color_change_gcode = M600
cooling_tube_length = 5
cooling_tube_retraction = 91.5
default_filament_profile = ""
default_print_profile =
deretract_speed = 0
end_gcode = ;BIQU Default End Gcode\nG91 ;Relative positioning\nG1 E-2 F2700 ;Retract a bit\nG1 E-2 Z0.2 F2400 ;Retract a bit more and raise Z\nG1 X5 Y5 F3000 ;Wipe out\nG1 Z10;Raise Z by 10mm\nG90 ;Return to absolute positionning\nG1 X0 Y235 ;TaDaaaa\nM106 S0 ;Turn-off fan\nM104 S0 ;Turn-off hotend\nM140 S0 ;Turn-off bed\nM84 X Y E ;Disable all steppers but Z
extra_loading_move = -2
extruder_colour = ""
extruder_offset = 0x0
gcode_flavor = marlin
high_current_on_filament_swap = 0
host_type = octoprint
inherits =
layer_gcode =
machine_limits_usage = emit_to_gcode
machine_max_acceleration_e = 5000,5000
machine_max_acceleration_extruding = 500,1250
machine_max_acceleration_retracting = 1000,1250
machine_max_acceleration_x = 500,1000
machine_max_acceleration_y = 500,1000
machine_max_acceleration_z = 100,200
machine_max_feedrate_e = 75,120
machine_max_feedrate_x = 250,200
machine_max_feedrate_y = 250,200
machine_max_feedrate_z = 10,12
machine_max_jerk_e = 2.5,2.5
machine_max_jerk_x = 8,10
machine_max_jerk_y = 8,10
machine_max_jerk_z = 0.2,0.4
machine_min_extruding_rate = 0,0
machine_min_travel_rate = 0,0
max_layer_height = 0
max_print_height = 270
min_layer_height = 0.07
nozzle_diameter = 0.4
parking_pos_retraction = 92
pause_print_gcode = M601
print_host =
printer_model =
printer_notes =
printer_settings_id =
printer_technology = FFF
printer_variant =
printer_vendor =
printhost_apikey =
printhost_cafile =
remaining_times = 0
retract_before_travel = 1.5
retract_before_wipe = 0%
retract_layer_change = 0
retract_length = 7.5
retract_length_toolchange = 10
retract_lift = 0.5
retract_lift_above = 0
retract_lift_below = 0
retract_restart_extra = 0
retract_restart_extra_toolchange = 0
retract_speed = 70
silent_mode = 0
single_extruder_multi_material = 0
start_gcode = M220 S100 ;Reset Feedrate\nM221 S100 ;Reset Flowrate\nG28 ;Home\nG92 E0 ;Reset Extruder\nG1 Z2.0 F3000 ;Move Z Axis up\nM109 S{first_layer_temperature[0]}; Preheat hotend\nG1 X10.1 Y20 Z0.28 F5000.0 ;Move to start position\nG1 X10.1 Y200.0 Z0.28 F1500.0 E15 ;Draw the first line\nG1 X10.4 Y200.0 Z0.28 F5000.0 ;Move to side a little\nG1 X10.4 Y20 Z0.28 F1500.0 E30 ;Draw the second line\nG92 E0 ;Reset Extruder\nG1 Z2.0 F3000 ;Move Z Axis up
template_custom_gcode =
thumbnails =
toolchange_gcode =
use_firmware_retraction = 0
use_relative_e_distances = 0
use_volumetric_e = 0
variable_layer_height = 0
wipe = 0
z_offset = 0
[presets]
print = BIQU B1 - Standard
sla_print =
sla_material =
printer = BIQU B1 (With Z Hop)
filament = BIQU B1 - GSDT - PLA+ Silver
