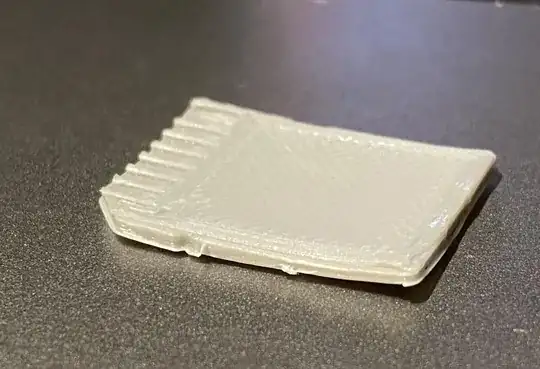

enter image description hereEnder 5 Pro prints are very uneven on base of the model.

In this example I printed an SD card dummy but it is not even flat.

Having a glass bed it is super strange to see this kind of behaviour.

Here are parameters in Cura.

M92 X80.00 Y80.00 Z800.00 E94.5 ;Setup step mm
M201 X500.00 Y500.00 Z100.00 E5000.00 ;Setup machine max acceleration
M203 X500.00 Y500.00 Z10.00 E50.00 ;Setup machine max feedrate
M204 P500.00 R1000.00 T500.00 ;Setup Print/Retract/Travel acceleration
M205 X8.00 Y8.00 Z0.40 E5.00 ;Setup Jerk

Thanks in advance, I tried quite a few calibrations but nothing helped so far.

Nick Shulhin
  • 3
  • 1

1 Answers1

0

This is a classic example of not enough adhesion. Tune bed temperature (usually hotter), use a brim or add an adhesive layer like glue stick or hair spray or a dedicated print adhesion spray.

The question "Warping of bottom of print" has an accepted answer that explains in detail how and why this occurs.
