attempting to differentiate the Cholesky decomposition... are previous derivations incorrect?

Question

Given a symmetric positive definite matrix $\mathbf{C}$ $\in \mathbb{R}^{m \times m}$, and its (lower triangular) Cholesky decomposition factor $\mathbf{L}$ $\in \mathbb{R}^{m \times m}$ such that $\mathbf{C}$ $=$ $\mathbf{L}$ $\mathbf{L}^\top$, I need to obtain the Jacobian $\frac{\partial \text{vec}(\mathbf{L})}{\partial \text{vec}(\mathbf{C})}$ $\in \mathbb{R}^{m^2 \times m^2}$.

As you could expect, this is not a new problem and many have already claimed to solve it. Notably, I found the following previous work done to try to do the partial derivative

• This mathoverflow post has several discussions regarding how to solve it

• in the comments of that post, page 231/252 of this textbook linked by user "pete" shows a derived proof (Theorem A.1) of the partial derivative of $\mathbf{L}$ w.r.t. $\mathbf{C}$, which can be easily used to construct $\frac{\partial \text{vec}(\mathbf{L})}{\partial \text{vec}(\mathbf{C})}$

• and with that, this paper by Iain Murray uses the above proof to derive $\frac{\partial \text{vec}(\mathbf{L})}{\partial \text{vec}(\mathbf{C})}$ on pg 4/18 (equation 14).

These resources lead to the following derivation:

$\frac{\partial \text{vec}(\mathbf{L})}{\partial \text{vec}(\mathbf{C})} \ = \ \big( \mathbf{I}_m \bigotimes \mathbf{L} \big) \ \mathbf{Z} \ \big( \mathbf{L}^{-1} \bigotimes \mathbf{L}^{-1} \big)$

where $\mathbf{Z}$ $=$ $\text{diag} \big( \text{vec} ( \mathbf{Q} ) \big)$ $\in \mathbb{R}^{m^2 \times m^2}$, and the lower triangular matrix $\mathbf{Q}$ $\in \mathbb{R}^{m \times m}$ is defined:

$\mathbf{Q}_{(i,j)} = \begin{cases} 1 \hspace{0.95cm} i > j \\ \frac{1}{2} \hspace{0.90cm} i = j \\ 0 \hspace{0.95cm} i < j \\ \end{cases} $

Note that these cited works define $\mathbf{Q} ( \mathbf{M} )$ as a function “Phi” acting on a square matrix $\mathbf{M}$, but this is equivalently given by the elementwise multiplication of $\mathbf{M}$ with the matrix $\mathbf{Q}$ I define above; I prefer writing using the elementwise multiplication of $\mathbf{Q}$ for the sake of simplicity (differentiated via $\text{diag} \big( \text{vec} ( \mathbf{Q} ) \big)$), since it appears to be more commonly used in derivations / matrix calculus.

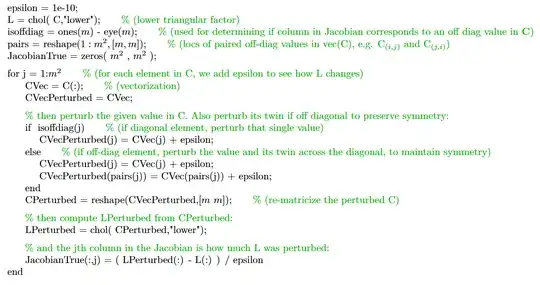

Now I needed to confirm that this Jacobian was correct, so I coded it in matlab, and compared it to the true Jacobian that you would get if you measured how $\mathbf{L}$ would change as you change each value in $\mathbf{C}$ by some infinitisimal value $\epsilon$, e.g. $\epsilon$ $=$ $1e-10$. The following matlab code can be used to obtain the true Jacobian, i.e., JacobianTrue = $\frac{\partial \text{vec}(\mathbf{L})}{\partial \text{vec}(\mathbf{C})}$:

Unfortunately, I found that this JacobianTrue disagrees with the JacobianDerived = $\frac{\partial \text{vec}(\mathbf{L})}{\partial \text{vec}(\mathbf{C})} \ = \ \big( \mathbf{I}_m \bigotimes \mathbf{L} \big) \ \mathbf{Z} \ \big( \mathbf{L}^{-1} \bigotimes \mathbf{L}^{-1} \big)$.

When inspecting the two Jacobians in a very simple $m=2$ case, where $\mathbf{C}$ $\in \mathbb{R}^{2 \times 2}$ and thus Jacobian $\in \mathbb{R}^{4 \times 4}$, I observed that JacobianDerived and JacobianTrue have columns that agree for diagonal entries in $\mathbf{C}$ (columns 1 and 4 in the Jacobian), but disagree for off-diagonal entries in $\mathbf{C}$ (columns 2 and 3 in the Jacobian).

It is worth noting that since $\mathbf{C}$ is symmetric, any two columns of the Jacobian $\frac{\partial \text{vec}(\mathbf{L})}{\partial \text{vec}(\mathbf{C})}$ corresponding to $\mathbf{C}_{(i,j)}$ and $\mathbf{C}_{(j,i)}$ must be equivalent to each other. This can be seen in the true Jacobian, but not in the derived Jacobian (specifically with $m=2$, the 2nd column of the Jacobian should equal the 3rd, corresponding to $\mathbf{C}_{(1,2)}$ and $\mathbf{C}_{(2,1)}$, but we don't see this equivalency of these columns in the derived Jacobian).

So I not only think the derived Jacobian is wrong, but I think perhaps the last term, $\big( \mathbf{L}^{-1} \bigotimes \mathbf{L}^{-1} \big)$, is probably the term that is incorrect, and maybe another as well. In order for the Jacobian to have its 2nd and 3rd column equal when $m=2$, the last matrix in that chain (here being $\big( \mathbf{L}^{-1} \bigotimes \mathbf{L}^{-1} \big)$) must necessarily have its 2nd column equal to the 3rd, but it is easy to show that this is not the case. I wonder also if the second term $\mathbf{Z}$ may also be incorrect, since I got an answer that slightly better resembled the true Jacobian when I set $\mathbf{P}_{(i,j)}$ $=$ 1 when $i = j$.

I am wondering where I go from here. I really need to obtain the correct hand derived form for $\frac{\partial \text{vec}(\mathbf{L})}{\partial \text{vec}(\mathbf{C})}$, but my tests clearly show that the previously derived form appears to be incorrect, and I do not see any clear way for how I could correct their derivations.

Answer 1

Start with $$ \pmb C = \left[\begin{matrix} x & y \\ y & t\end{matrix} \right], \; (\operatorname{vec} \pmb C)^\top = \left[ \begin{matrix} x & y & y & t \end{matrix} \right] $$ For Cholesky decomposition to work $\pmb C=\pmb C^\top$ and so this matrix has only 3 independent variables. Since $\pmb L \pmb L^\top = \pmb C$, $$ \pmb L=\left[\begin{matrix}\sqrt{x} & 0\\\frac{y}{\sqrt{x}} & \sqrt{t - \frac{y^{2}}{x}}\end{matrix}\right], \; (\operatorname{vec} \pmb L)^\top = \left[ \begin{matrix} \sqrt{x} & \frac{y}{\sqrt{x}} & 0 & \sqrt{t-\frac{y^2}{x}} \end{matrix} \right]. $$ So we have $$ \frac{\partial \operatorname{vec} \pmb L}{\partial (\operatorname{vec} \pmb C)^\top} = \left[ \begin{matrix} \frac{1}{2\sqrt{x}} & 0 & 0 & 0 \\ -\frac{y}{2x^{\frac{3}{2}}} & \frac{1}{\sqrt{x}} & \frac{1}{\sqrt{x}} & 0 \\ 0 & 0 & 0 & 0 \\ \frac{y^2}{2x^2\sqrt{t-\frac{y^2}{x}}} & -\frac{y}{x\sqrt{t-\frac{y^2}{x}}} & -\frac{y}{x\sqrt{t-\frac{y^2}{x}}} & \frac{1}{2\sqrt{t-\frac{y^2}{x}}} \end{matrix} \right]. $$ To apply the solution by @greg using matrix calculus first calculate $$ \pmb L^{-1}=\left[\begin{matrix}\frac{1}{\sqrt{x}} & 0\\- \frac{y}{x \sqrt{t - \frac{y^{2}}{x}}} & \frac{1}{\sqrt{t - \frac{y^{2}}{x}}}\end{matrix}\right]. $$ Then $$ \pmb L^{-1} \otimes \pmb L^{-1}= \left[\begin{matrix}\frac{1}{x} & 0 & 0 & 0\\- \frac{y}{x^{\frac{3}{2}} \sqrt{t - \frac{y^{2}}{x}}} & \frac{1}{\sqrt{x} \sqrt{t - \frac{y^{2}}{x}}} & 0 & 0\\- \frac{y}{x^{\frac{3}{2}} \sqrt{t - \frac{y^{2}}{x}}} & 0 & \frac{1}{\sqrt{x} \sqrt{t - \frac{y^{2}}{x}}} & 0\\\frac{y^{2}}{x \left(t x - y^{2}\right)} & - \frac{y}{t x - y^{2}} & - \frac{y}{t x - y^{2}} & \frac{x}{t x - y^{2}}\end{matrix}\right]. $$ We must also calculate $$ \pmb I \otimes \pmb L= \left[\begin{matrix}\sqrt{x} & 0 & 0 & 0\\\frac{y}{\sqrt{x}} & \sqrt{t - \frac{y^{2}}{x}} & 0 & 0\\0 & 0 & \sqrt{x} & 0\\0 & 0 & \frac{y}{\sqrt{x}} & \sqrt{t - \frac{y^{2}}{x}}\end{matrix}\right]. $$ Since $$ \pmb Q = \left[ \begin{matrix} \frac{1}{2} & 0 \\ 1 & \frac{1}{2} \end{matrix} \right], \; (\operatorname{vec} \pmb Q)^\top = \left[ \begin{matrix} \frac{1}{2} & 1 & 0 & \frac{1}{2} \end{matrix} \right] $$ we have $$ \pmb Z=\operatorname{diag}\operatorname{vec} \pmb Q= \left[\begin{matrix}\frac{1}{2} & 0 & 0 & 0\\0 & 1 & 0 & 0\\0 & 0 & 0 & 0\\0 & 0 & 0 & \frac{1}{2}\end{matrix}\right]. $$ If we use the formula $$ \frac{\partial \operatorname{vec} \pmb L}{\partial (\operatorname{vec} \pmb C)^\top} =(\pmb I \otimes \pmb L) \pmb Z (\pmb L^{-1} \otimes \pmb L^{-1}) $$ we get $$ \left( \pmb I \otimes \pmb L \right) \pmb Z \left( \pmb L^{-1} \otimes \pmb L^{-1} \right)= \left[\begin{matrix}\frac{1}{2 \sqrt{x}} & 0 & 0 & 0\\- \frac{y}{2 x^{\frac{3}{2}}} & \frac{1}{\sqrt{x}} & 0 & 0\\0 & 0 & 0 & 0\\\frac{y^{2}}{2 x^{2} \sqrt{t - \frac{y^{2}}{x}}} & - \frac{y}{2 x \sqrt{t - \frac{y^{2}}{x}}} & - \frac{y}{2 x \sqrt{t - \frac{y^{2}}{x}}} & \frac{1}{2 \sqrt{t - \frac{y^{2}}{x}}}\end{matrix}\right]. $$ There is perfect agreement between the terms that only involve $x$ and $t$. Because Cholesky requires $\pmb C$ to be symmetric the terms that involve differentiation by $y$ do not agree.

Answer 2

Here is a quick numerical test (in Julia) of the formula in question

# Julia lacks a nice eye() function
n = 2;  Ia = Matrix(I,n,n) * 1.0;
construct SPD test matrix
A = randn(n,n); A = A'A
#=
 1.22053   0.184283
 0.184283  0.583172
=#
Cholesky factor
L = cholesky(A).L
#=
 1.10478   0.0
 0.166805  0.745217
=#
construct a small symmetric perturtation
dA = randn(n,n)/2e6;  dA = dA + dA'
#=
 -9.13143e-7  7.88079e-7
  7.88079e-7  2.74055e-8
=#
calculate the perturbation of L
dL = cholesky(A+dA).L - L
#=
 -4.1327e-7    0.0
  7.75736e-7  -1.55249e-7
=#
use the formula to ESTIMATE dL
V = inv(L);
P = LowerTriangular(ones(n,n) - Ia/2);
dLest = L(P.(VdAV'))
#=
 -4.1327e-7    0.0
  7.75735e-7  -1.55249e-7
=#
error of the estimate
norm(dLest-dL)
5.785647315602491e-13
vectorize the formulas
dl = vec(dL);
dlest = kron(Ia,L)Diagonal(vec(P))kron(V,V)*vec(dA);
[ dl dlest (dl-dlest) ]
#=
 -4.1327e-7   -4.1327e-7   -7.72474e-14
  7.75736e-7   7.75735e-7   3.01813e-13
  0.0          0.0          0.0
 -1.55249e-7  -1.55249e-7  -4.87523e-13
=#
the gradient matrix is lower triangular
(corresponding to Ted's 2nd derivation)
G = kron(Ia,L)Diagonal(vec(P))kron(V,V)
#=
  0.45258     0.0        0.0       0.0
 -0.0683329   0.90516    0.0       0.0
  0.0         0.0        0.0       0.0
  0.0152953  -0.101303  -0.101303  0.670946
=#
