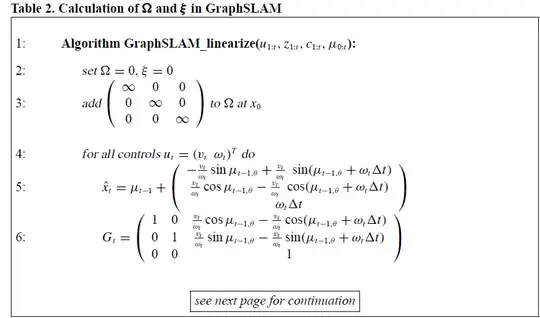

I am trying to implement Graph slam. I have some doubts regrading implementation. I attached a picture to clarify my doubt.

[enter image description here

enter image description here

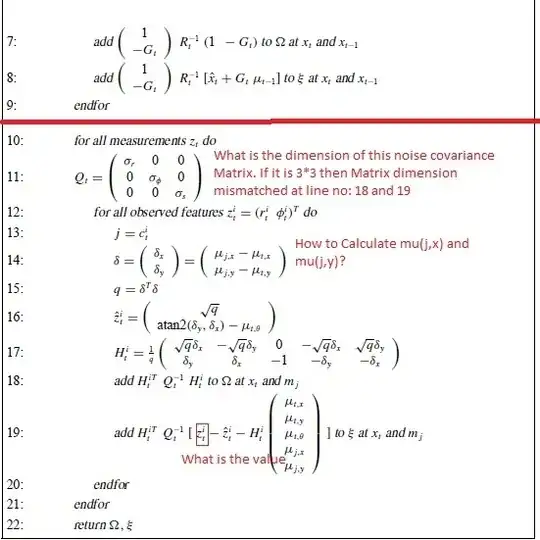

I have a doubt in line number 2. It show omega have a scalar value 0. But at line 3 it show omega is a Matrix.

Next doubt at line 7. In this line omega which is a 3*3 matrix is add with a 6*6 matrix. As per my knowledge it is impossible.

I share the link of the paper where page no: 411-412 define this algorithm. Link of the paper is http://robots.stanford.edu/papers/thrun.graphslam.pdf.

If any one working on it please share your knowledge.

Encipher
  • 165
  • 9

1 Answers1

1

Often we use $0$ to represent the all-zeros matrix, so the instruction to set $\Omega = 0$ might mean to set it to the all-zeros matrix (with a zero in every entry). You'll have to figure out from context whether that seems correct.

D.W.
  • 167,959
  • 22
  • 232
  • 500
