I'm printing a cylindrical piece but at any moment it breaks down. I tried it two times, both have break down in different place. I'm using a 1.75 mm PLA filament in my Anet A8. I'm using Cura 2.6.2 to export to a .gcode file.

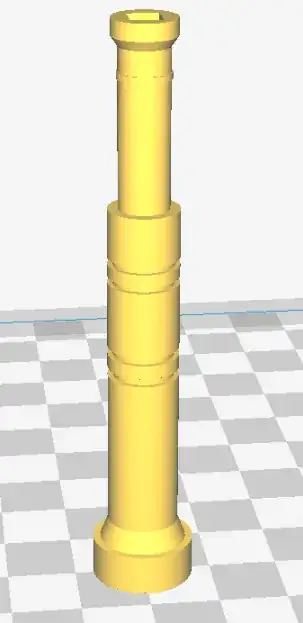

This is the original model:

Original model

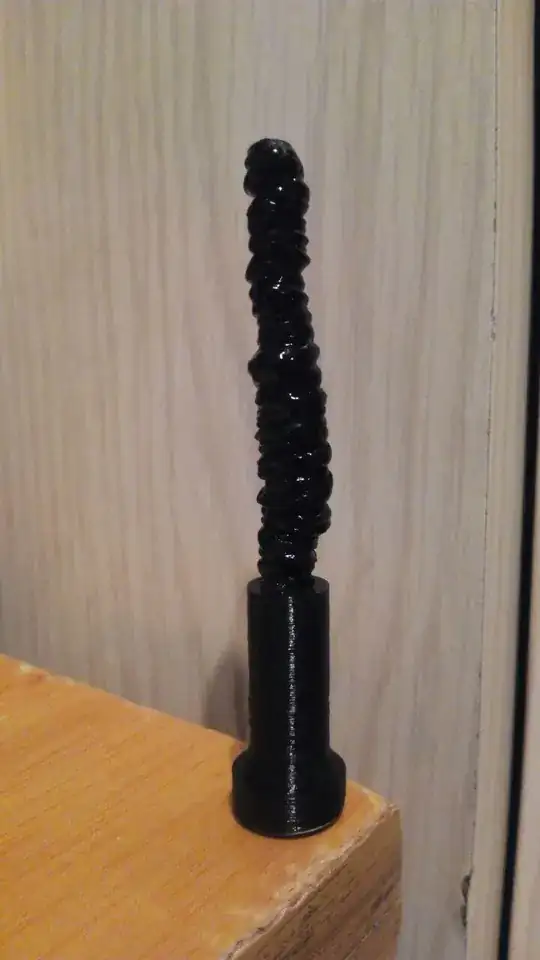

And this is the result:

Printed result

Here is the G-code file.

Greenonline
  • 6,748
  • 8
  • 40
  • 68
legomolina
  • 143
  • 3

2 Answers2

5

The answer by fred_dot_u is fine for small prints with relative low cost or batch producing, where a single part is needed several times. But if you print something big or unique it's not cost effective. Slowing down the complete print is also not very time efficient.

In Cura there an option called Mininum layer time, which addresses this problem:

Cooling -> Minimum Layer Time / Minimum Speed

This means that it will only slow down when the print distance for a particular layer is short. Giving the material some extra time to harden. Other layers will be printed at normal speed. Increased print time will be limited this way.

For your situation I would advise you to increase the part cooling, if possible, in conjunction with configuring the Minimum Layer Time option mentioned above.

Trish
  • 22,760
  • 13
  • 53
  • 106
Shwans
  • 61
  • 1
  • 4
3

The first thought that pops into my mind is insufficient cooling. Consider to either slow down the nozzle speed or to construct a toss-away model nearby. I prefer the toss-away or duplicate model method. It allows the material printed on the first column to cool more effectively while the material on the second column is being deposited.

If the problem persists, add a third column or slow the print speed about 10 mm / second
