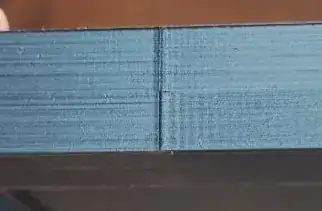

I'm printing a frame, and in it there is a junction line that isn't present in the model:

enter image description here

which also changes midway, with nothing changing in the model.

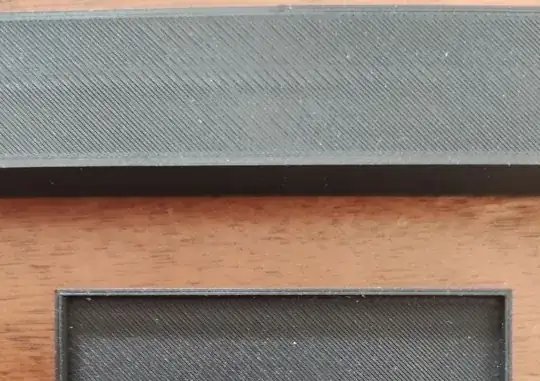

I found about Z-seams, but I'm not sure this is the case, because on the other side at some point it disappears:

enter image description here

Also, it's present inside be print itself, it's not just on the exterior:

enter image description here

Not sure if it's relevant, right behind it there is a hole (not showing in the third image because it's another print, I didn't have a photo of the right one; but it's the same thing: line, hole, line, with two lines starting from the walls and ending in the central hole); the hole doesn't align with where the line on the inner side ends, though, the line is shorter.

The frame has also an inner frame, which doesn't show the line:

enter image description here

If it's relevant, I sliced it with Cura; gyroid 20%, 10% and lighting 10% all have that line.

Mauro
  • 113
  • 5

0 Answers0
